OUR PRODUCTS

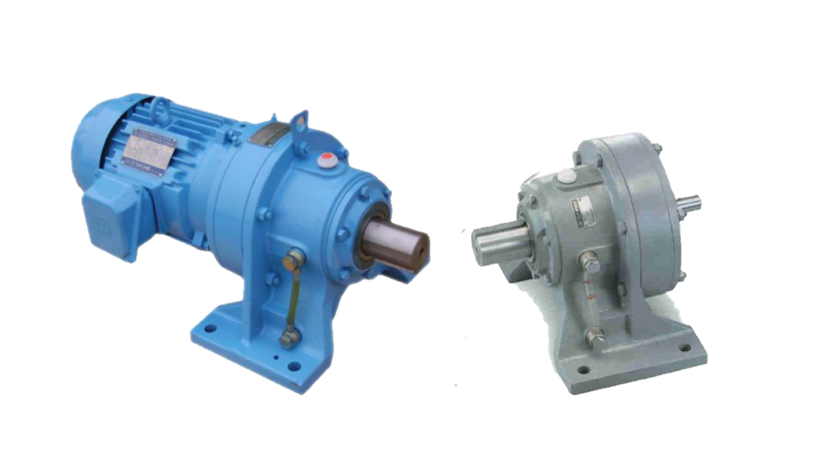

Cycloidal 600 Series
Single Reduction Ratio: 6 / 8 / 11 / 13 / 15 / 17 / 21 / 25 / 29 / 35 / 43 / 51 / 59 / 71 / 87
Double Reduction: 104 up to 7569

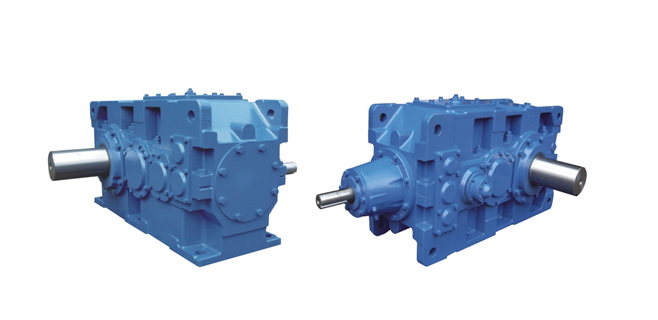

TSG Gearbox
Bevel Helical Gearbox (Right Angle)
Double Reduction Ratio: 6.3 up to 22.4
Triple Reduction Ratio: 20 up to 90
Quadruple Reduction Ratio: 71 up to 450
Helical Gearbox (Parallel Offset)
Double Reduction Ratio: 6.3 up to 22.4
Triple Reduction Ratio: 20 up to 90
Quadruple Reduction Ratio: 80 up to 500
Output Torque: 8.5kNm up to 552kNm

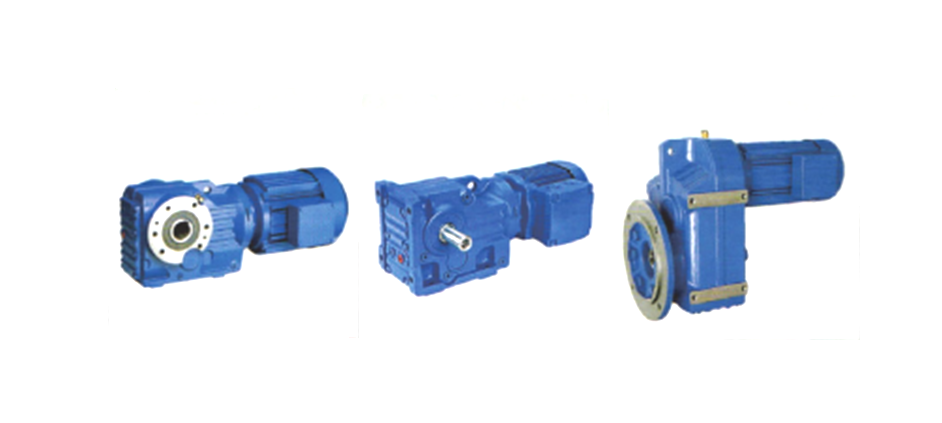

Bevel Helical (Right Angle)
0.12KW up to 200KW
Output: Hollow Shaft Key Type, Solid Shaft Type
Mounting Type: Hollow Shaft with Torque Arm, Flange Mount, Foot Mount
Mounting Configuration: Vertical, Incline, Horizontal

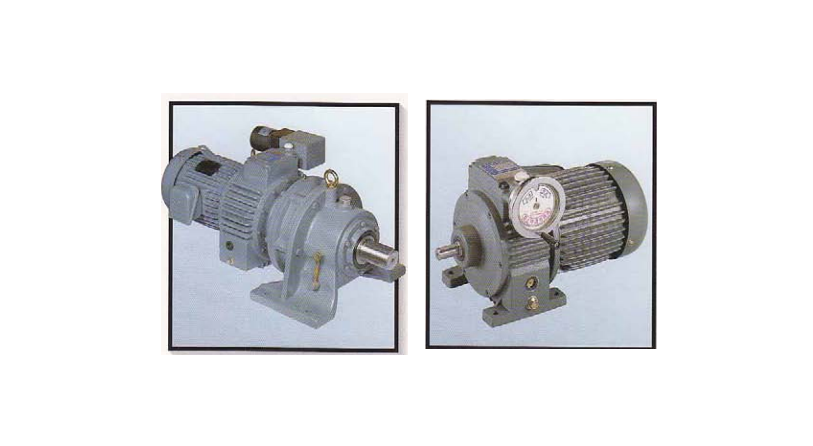

Mechanical Variable Speed Drive
Speed Ratio: 1 is to 6 (1:6)
Output Speed: from 0 to 1200rpm
Option: Combined with Cycloidal Speed Reducer or Helical Gearbox

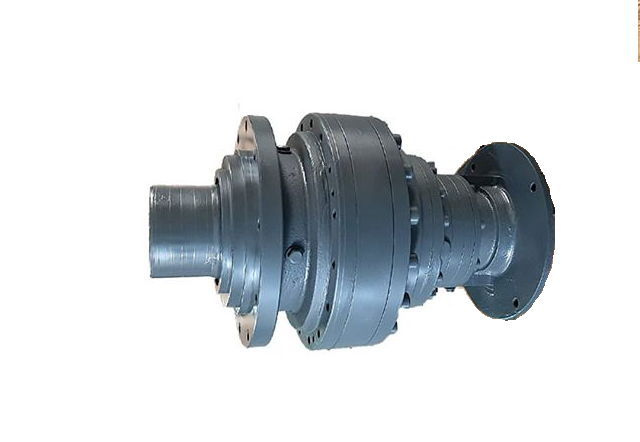

Planetary Gearbox
Ratio: 3.48 up to 2916 : 1
Output Torque: up to 518400Nm
Mounting Type: Hollow Shaft with Shrink Disc, Solid Shaft Foot Mount
Mounting Configuration: Horizontal, Incline, Vertical

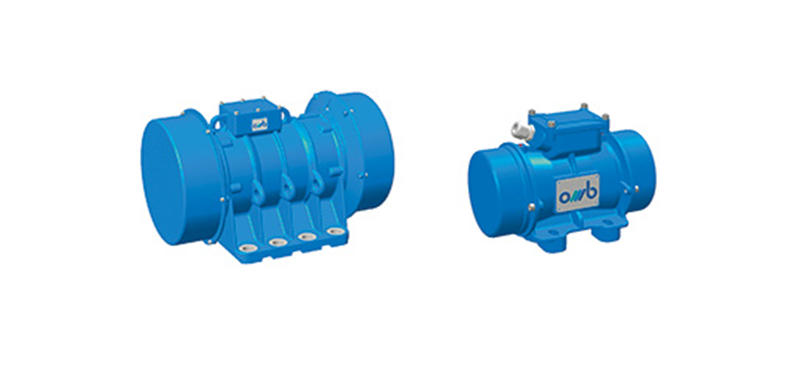

Electric Vibrating Motor
Supply: 3 Phase, Single Phase
No. of Poles: 2, 4, 6, 8, 10, 12
Centrifugal Force: 0.75kN up to 9.93kN
Product Application

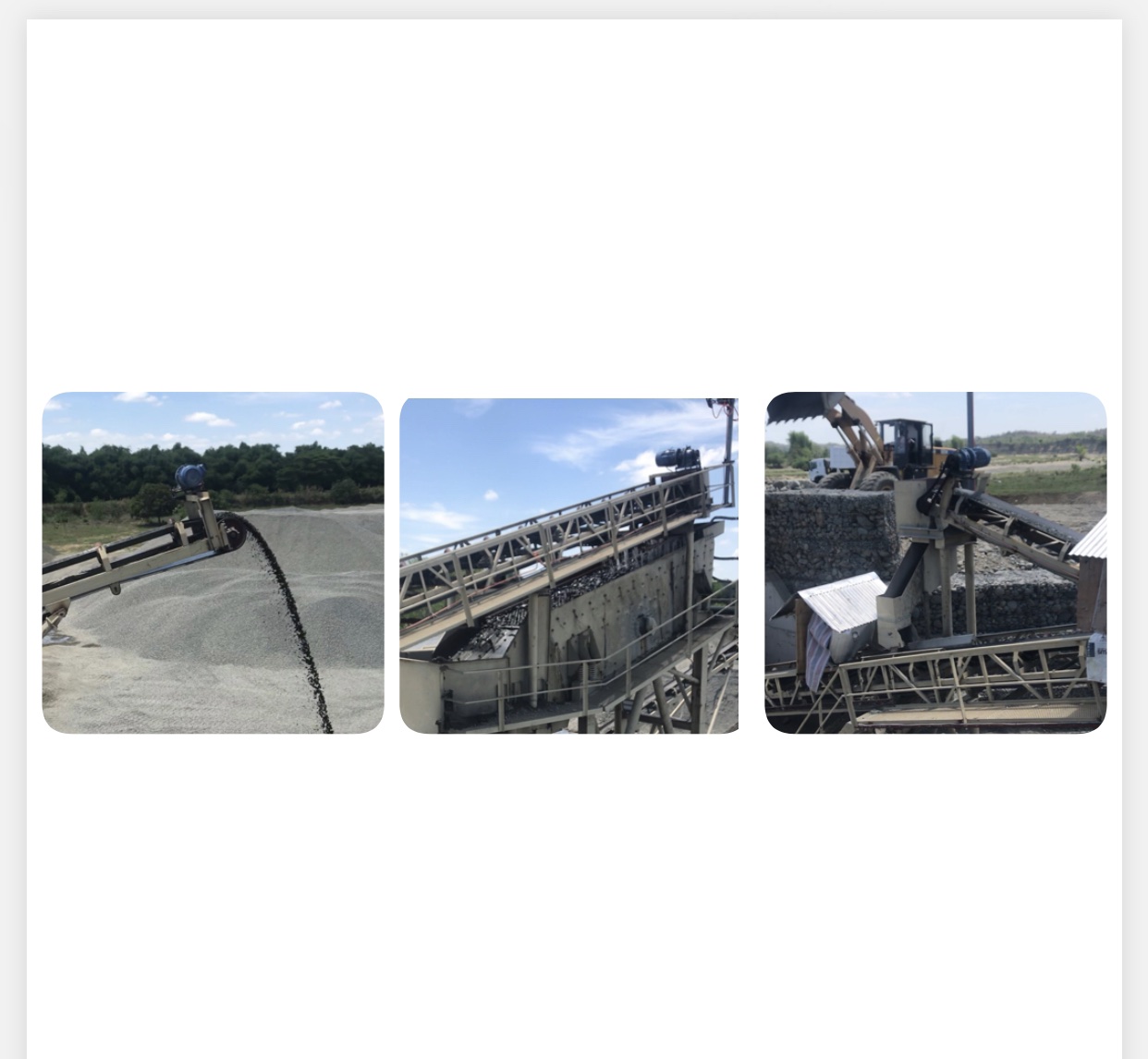

Stone Crushing and Quarry
Supply, Fabricate and Install
Belt Conveyor Components:
- Cycloidal Gearmotor
- Rubber Converyor Belt
- Conveyor Trough Carrier Three Equal Length Roller Frame
- Return Carrier Hanging Bracket
- Carrier and Return Rollers With Bearing Housing and Labyrinth Seal
- Rubber Lag Head Pulley With Keyless Hub
- Plain Steel Return and Bend Pulleys With Keyless Hub
- Primary and Secondary Belt Converyor Scraper and Cleaner
Other Material Handling Components:
- Vibrating Motor and Feeder
- Vibrating Motor and Grizzly
- Permanent and Electromagnetic Separator
- Cycloidal Speed Reducer Double Reduction at about 1 up to 2 rpm Output Speed for Bucket Wheel Sand Washer.
- AC Induction Motor
- Centrifugal Water Pump
- Electrical Controls
Product Application

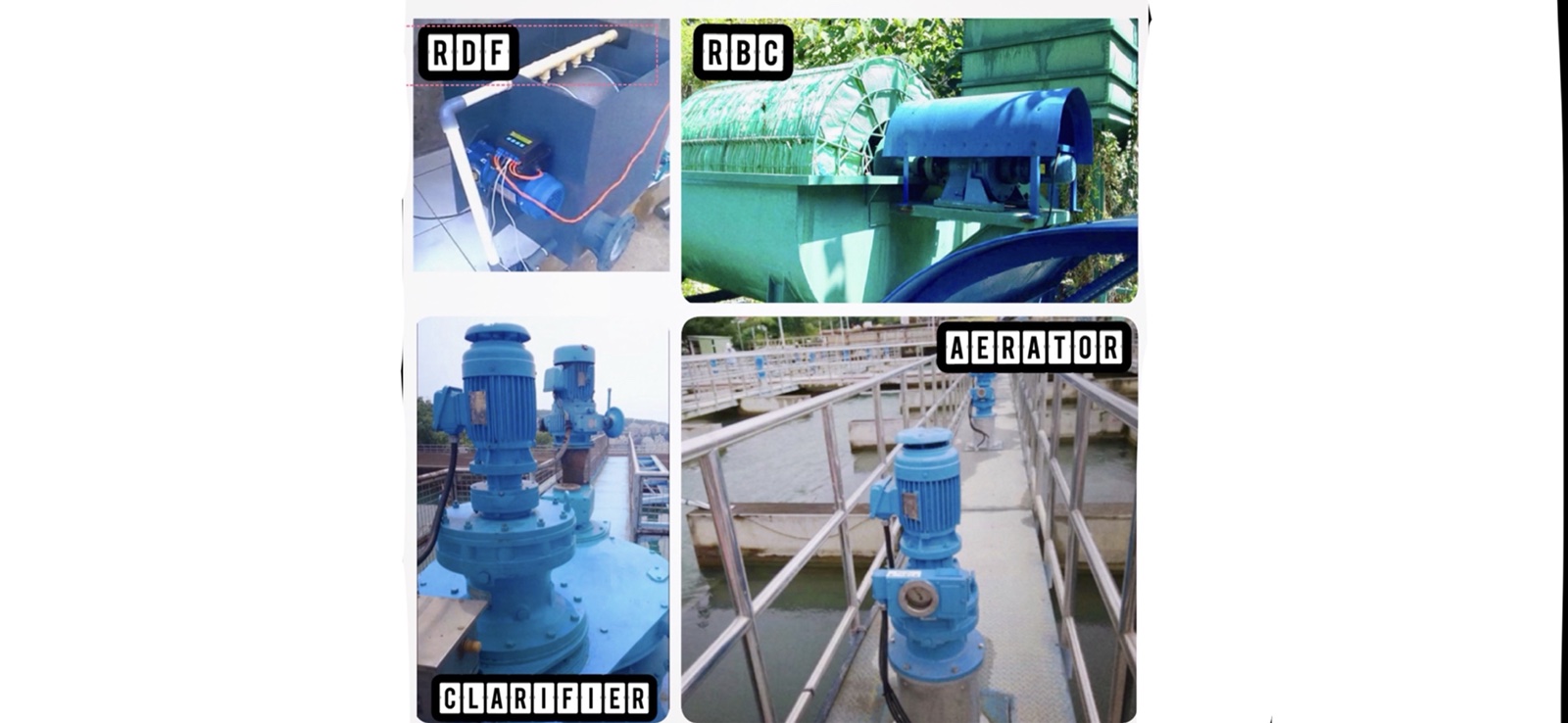

Sewage Water Treatment Drive System
- Rotary Drum Filter, center driven with Cycloidal Worm Hollow Shaft Gearmotor at about 5 up to 10 rpm output speed. Motor Power 180W.
- Rotating Biological Contactor, center driven with Cycloidal Double Reduction Gearmotor directly coupled at about 1 to 1.5rpm output speed. Motor Power 750W up to 1500W
-Clarifier Bridge Type, center driven Cycloidal Vertical Flange Type Tripple Reduction Gearmotor at about 0.06 up to 0.09rpm output speed. Solid Output Shaft directly coupled to Clarifier Shaft. Motor Power 180W up to 550W.
-Surface Aerator, center driven Cycloidal Vertical Flange Type Single Reduction Gearmotor with extension base for high thrust load. Output Speed at about 83 up to 135rpm. Solid Output Shaft directly coupled to Aerator Empeller. Motor Power 2.2kw up to 37kw.
Product Application

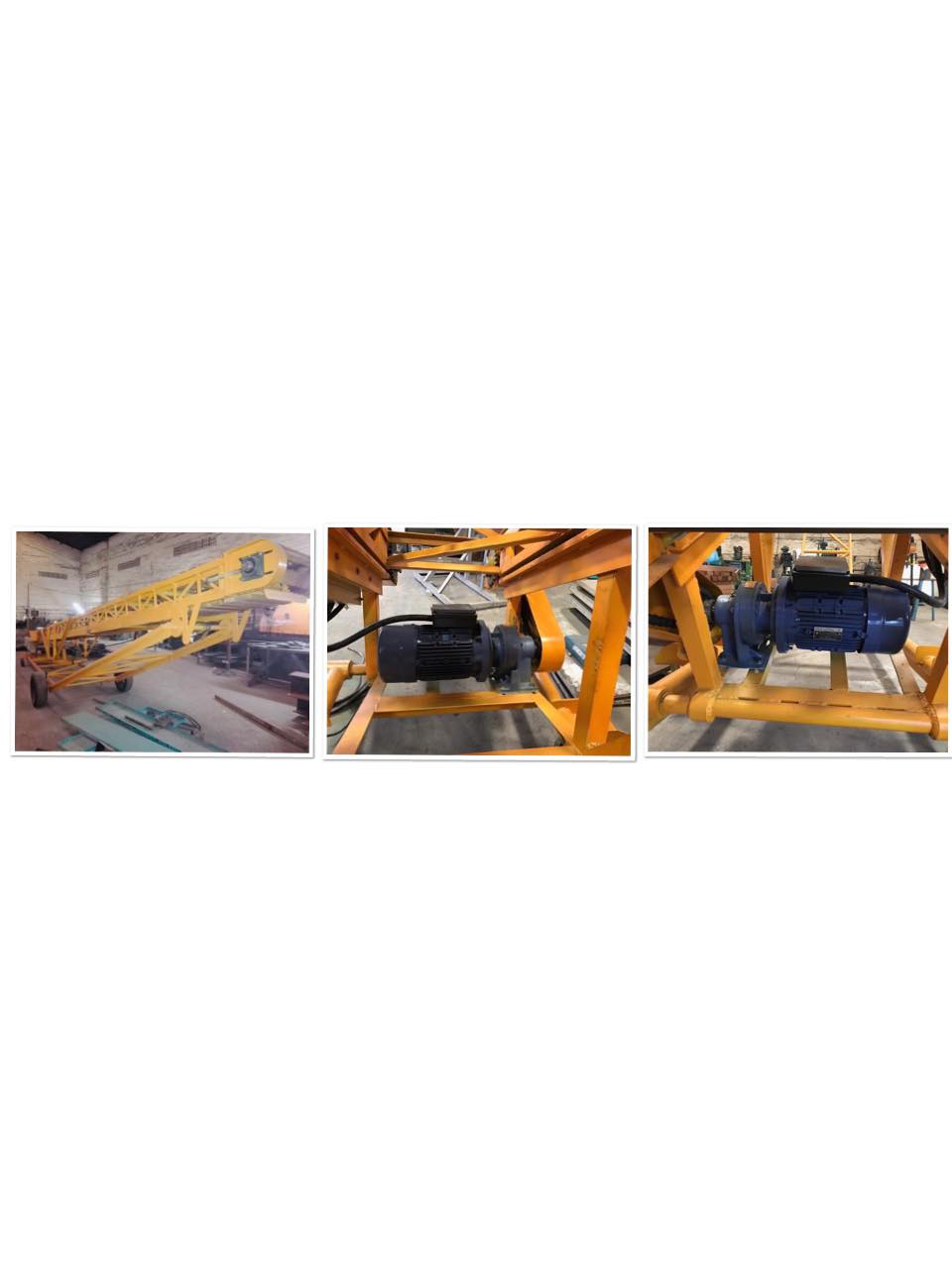

Warehouse Loading and Unloading Bag (Sack) Conveyor
By connecting with Mobile Conveyor the bags can be move to the desired location / warehouse for unloading. By reversing the motors, the bags can be move using the mobile conveyors from the inside of the warehouse directly to the Truck Loading Conveyor. Suitable Mobile Conveyors can be offered depending on the length required.
Main Conveyor Drive:
Cycloidal Gearmotor with Brake (1.5kw - 3.7kw, Ratio 29-43)
Winch Drive for elevation adjustment (self locking worm gearmotor: 0.75Kw - 2.2Kw, Ratio 20-60)
